2M XTS Modulbox XTS DD

Features

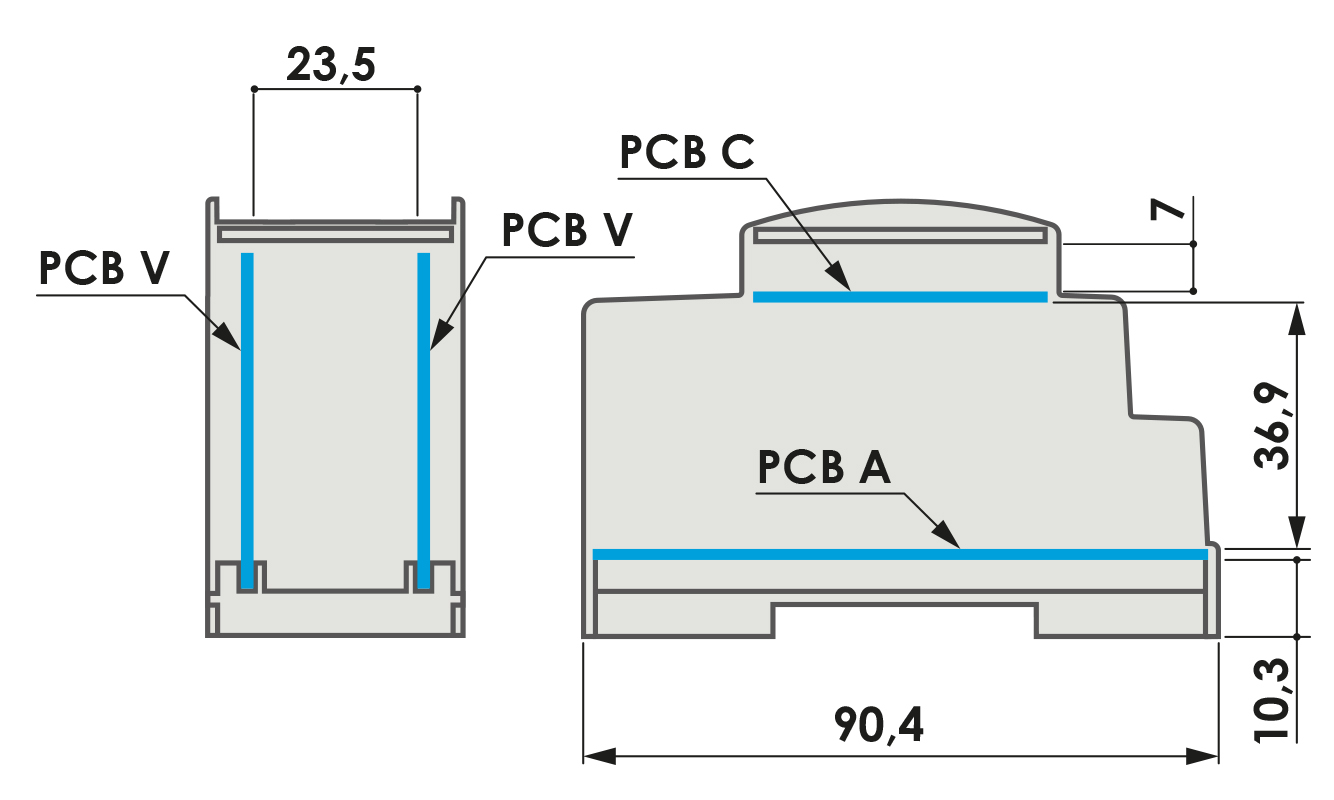

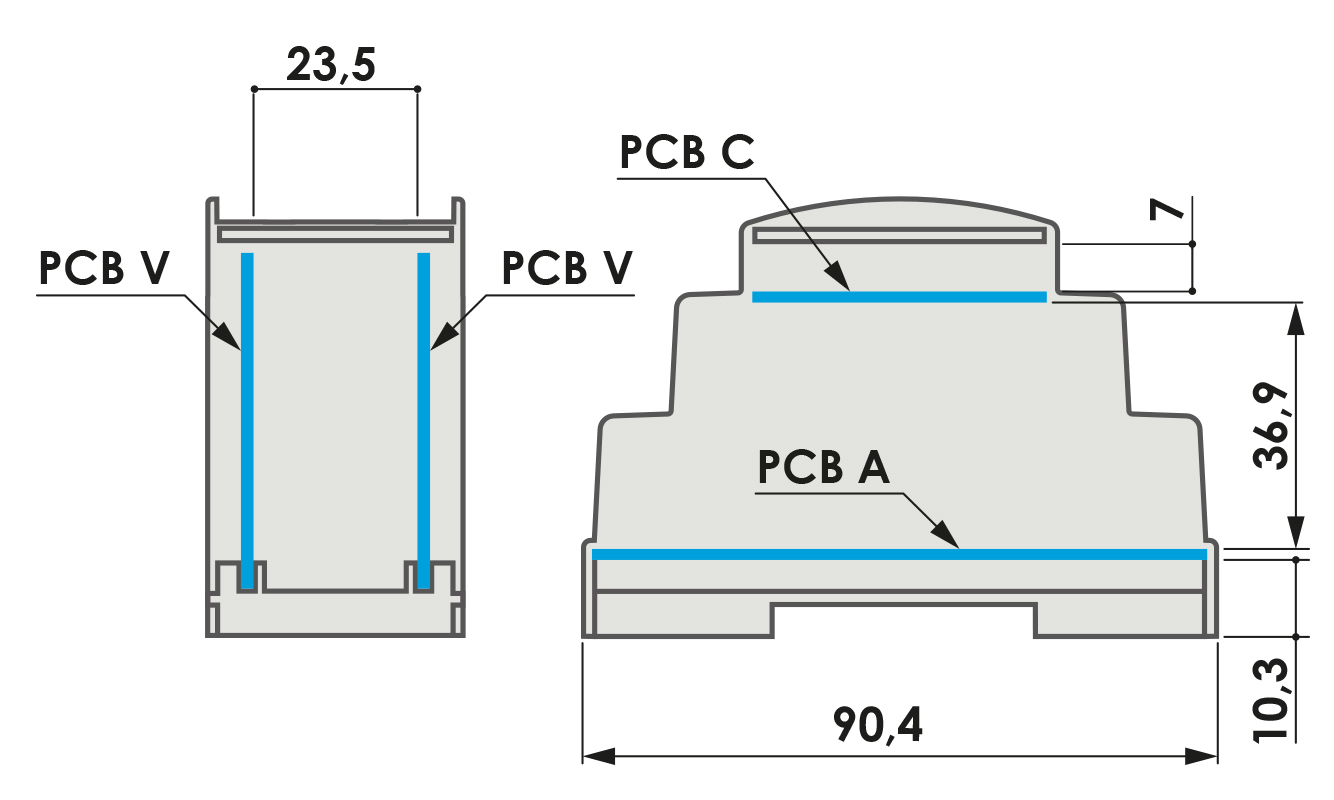

XTS DD (Double Deck) assemblable on DIN Rail guides (EN 60715), has been projected to offer a wide surface useful on 3-4 PCBs that can be put inside through pins strip, suggested in the specifications. Moreover, either fix and plug-in terminals can be inserted, on two floors per side, offering up to 24 poles pitch 5mm on the 2M. The terminal covers are no more necessary because already foreseen directly on the mould in the most required combinations. Customizations are anyway possible to be done thanks to the CNC machinings starting from the enclosure closed version or directly by mould.

Through the development of inserts for the mould tool, the Modulbox XTS series can be customised according to Customers’ specific requirements at extremely affordable costs.
